Description

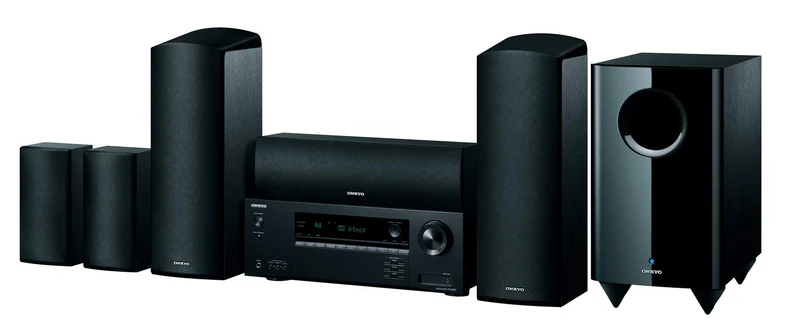

ONKYO hts-5915 dolby atmos home theater package
that is suitable for medium sized room with active subwoofer, dolby atmos option
| Category | Specification |
|---|---|
| Configuration | 5.1.2-channel system: five main speakers, one subwoofer, two height channels (built-in or virtual) |
| Amplifier Power | 160 W/ch (6 Ω, 1 kHz, 10 % THD, one channel driven); 135 W/ch (IEC, 1 % THD) |
| THD + N | 0.08 % (20 Hz–20 kHz, half power) |
| Frequency Response | 10 Hz–100 kHz (+1 dB / −3 dB, Direct Mode) |
| SNR (Signal-to-Noise) | 109 dB (Line, IHF-A) |
| Connectivity | – HDMI: 4 inputs, 1 ARC-enabled output (4K/60Hz, HDR10, HLG, Dolby Vision, BT.2020, 4:4:4/24-bit) |
Coaxial/optical digital inputs
RCA analog inputs
Bluetooth (Advanced Music Optimizer)
Zone B line-out for secondary audio zone
| Calibration & DSP | AccuEQ room calibration with AccuReflex™, Vocal Enhancer DSP, Dolby Atmos Height Virtualizer, DTS Virtual:X| Video Pass-through | Supports 4K/60p and HDR (HDR10, HLG, Dolby Vision, BT.2020) with on-screen media format display
| Speakers (Front) | 2-way bass-reflex with 12 cm cone woofer + 2.5 cm tweeter; connected height-effect 8 cm driver
| Speakers (Centre) | 2-way bass-reflex; dual 8 cm cone woofer + tweeter
| Speakers (Surround) | Full-range acoustic-suspension with 8 cm cone wooferSubwoofer | Powered bass-reflex, 20 cm cone; max output 90 W (4 Ω, 100 Hz, 10 % THD), rated 80 W (IEC)
| Speaker Power Handling | Front/centre/surround/height: max input 130 W; Subwatch subwoofer output 90 W
| Speaker Frequency Responses | Front: 55 Hz–50 kHz
Height: 80 Hz–20 kHz
Centre: 65 Hz–50 kHz
Surround: 80 Hz–20 kHz
Subwoofer: 27 Hz–150 Hz| Speaker Sensitivity (SPL) | Front: 83 dB/W/m
Height: 82.5 dB/W/m
Centre: 86 dB/W/m
Surround: 81 dB/W/m| Dimensions (Receiver) | 435 × 160 × 328 mm
| Weight (Receiver) | 8.2 kg
| Additional Features | FM/AM tuner
| Total RMS Power | Approximately 480 W total across all channels (including subwoofer)
